Kardex VLM Box 800 & VLM Box 850

For the Vertical Lift Module Kardex Shuttle, we offer two box sizes, the Kardex VLM Box 800 and the Kardex VLM Box 850. Discover which best suits your needs.

The two Kardex VLM Boxes are designed to match specific VLM Kardex Shuttle tray sizes, making tray compatibility the primary factor when choosing between them. The Kardex VLM Box 850 is suitable for larger trays and is made from slightly stronger material, offering added durability. The Kardex VLM Box 800 is the right fit for smaller trays and is made from lighter material. Both versions offer modular flexibility in height, width, and depth and can be customized with a compatible base, frame, and up to eight dividers in various sizes.

Kardex VLM Box 800 versus 850

Feature VLM Box 800 VLM Box 850
Dimensions Dimensions Dimensions VLM Box 800 800 mm × 600 mm × 50 mm Dimensions VLM Box 850 850 mm x 598 mm x 53 mm
Material Material Polypropylene (box & frame), PET/SAN (dividers) Polypropylene (box & frame), PET/SAN (dividers) Purely polypropylene Purely polypropylene
Weight (empty box) Weight (empty box) 1.32 kilograms 1.32 kilograms 1.646 kilograms 1.646 kilograms
Volume Volume Volume VLM 800 17.4 liters Volume 850 18.95 liters
Elevation grid of the frames Elevation grid of the frames Elevation grid of the frames VLM 800 Elevation grid of the frames 850
Elevation grid of the frames (base) Base box Elevation grid of the frames VLM 800 Base Box 50 mm Elevation grid of the frames 850 Base Box 53 mm
Elevation grid of the frames (base box + 1 frame) Base box + 1 frame Elevation grid of the frames VLM 800 Base Box + 1 frame 100 mm Elevation grid of the frames 850 Base Box + 1 frame 103 mm
Elevation grid of the frames (base + 2 frames) Base box + 2 frames Elevation grid of the frames VLM 800 Base Box (base + 2 frames) 150 mm Elevation grid of the frames 850 Base Box (base + 2 frames) 153 mm
Elevation grid of the frames (base + 3 frames) Base box + 3 frames Elevation grid of the frames VLM 800 Base Box (base + 3 frames) 200 mm Elevation grid of the frames 850 Base Box (base + 3 frames) 203 mm
Divider color Divider color VLM Box 800 Transparent dividers VLM Box 850 Silver fir blue dividers
Spacer Spacer VLM Box 800 Compatible with VLM Box 800 spacer VLM Box 850 No spacers needed
Payload Payload VLM Box 800 Payload depends on the tray used VLM Box 850 Payload depends on the tray used

Choose the Right StartKit for Your Needs

Whether you select the Kardex VLM Box 800 or the Kardex VLM Box 850, you can kick-start your setup with one of three StartKits.

Each kit includes a preconfigured mix of bases, frames, and dividers to help you explore a wide variety of storage locations and find the perfect fit for your inventory. Once you’ve identified what works, you can custom order exactly what you need.

  • StartKit 1

    This is the most popular StartKit, ideal for storing goods of varying heights ranging from 50 to 200 mm. Choose between "StartKit 1 Small" or "StartKit 1 Big"

  • StartKit 2

    Designed for storing low-height goods between 50 and 150 mm in height. Choose between "StartKit 2 Small" or "StartKit 2 Big"

  • StartKit 3

    StartKit 3 is your best choice for storing higher goods between 100 to 200 mm in height. Choose between "StartKit 3 Small" or "StartKit 3 Big"

StartKit 1

This is the most popular StartKit, ideal for storing goods of varying heights ranging from 50 to 200 mm. Choose between "StartKit 1 Small" or "StartKit 1 Big"

StartKit 2

Designed for storing low-height goods between 50 and 150 mm in height. Choose between "StartKit 2 Small" or "StartKit 2 Big"

StartKit 3

StartKit 3 is your best choice for storing higher goods between 100 to 200 mm in height. Choose between "StartKit 3 Small" or "StartKit 3 Big"

Kardex VLM Box Spacer

The VLM Box Spacer is only relevant for the VLM Box 800. It ensures optimal use of the VLM Box 800 in 864 mm deep trays by positioning the boxes precisely and securely in the tray. This way, the VLM Box Spacer increases space utilization while reducing picking errors. Its quick-click connection system and ergonomic design make it a smart, flexible addition to your storage layout.

Insights

Contact us to understand what Kardex VLM Box best fits your needs

CONTACT US

More Solution from Kardex

Kardex_img_customer_Wagenaar_03-1200x1200-f1bb952

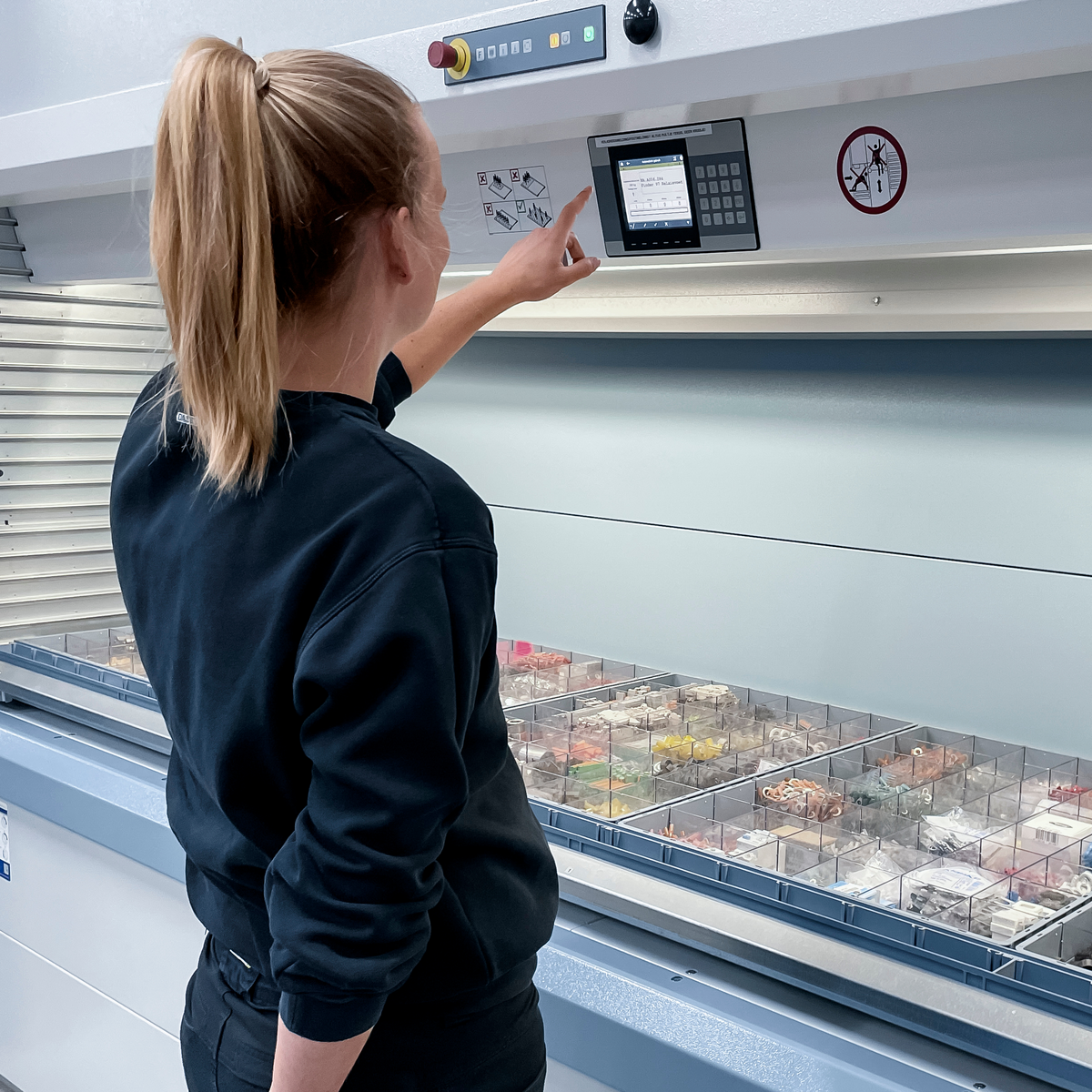

Optimizing Small Parts Storage
