Kardex VLM Boxes

Kardex VLM Boxes are designed to fit the VLM Kardex Shuttle trays perfectly, maximizing storage space. Their flexible frame and divider system can be configured for virtually any product and easily adapted as your storage needs change.

We offer two box sizes: the Kardex VLM Box 800 and the Kardex VLM Box 850. Select the right box based on your Kardex Shuttle tray size. The Kardex VLM Box 850 is optimized for larger trays and features a more robust material for increased durability, while the Kardex VLM Box 800 is optimized for smaller trays and is made from lighter material.

Combined with Kardex Power Pick System or Power Pick Cloud, powered by the KardexOne software platform, both Kardex VLM Boxes help operators pick faster and more accurately while maximizing storage density, improving productivity, and increasing the return on your investment.

How does the Kardex VLM Box work?

Features & Benefits

  • Icon_VLM box tote

    Adapt to Any Inventory

    Configure your storage with more than 300 location possibilities and a flexible design that evolves with your changing requirements

  • Kardex_Icon_Higher_Picking_Performance

    Pick Faster, Pick Smarter

    Reduce errors and increase picking speed with boxes that fit the Kardex VLM Unit perfectly and stay securely in position

  • Icons_Bubble_B1_ROI_150x150

    Maximize Your ROI

    Make full use of every millimeter of storage space and increase storage density with a box tailored to the VLM Kardex Shuttle

  • Kardex_Icon_Ergonomic_Working_Conditions

    Work More Ergonomically

    Handle and access inventory comfortably with a box designed specifically for the VLM Kardex Shuttle

  • Kardex_Icon_Environment-01_Bubble

    Choose Sustainably

    The compact frame design saves transport and storage space, while recyclable materials and minimal production waste save resources

  • Kardex_Icon_Cloud_Updload

    Connect to Power Pick

    Get started quickly with pre-configured box layouts and software-guided picking for greater efficiency and accuracy

Icon_VLM box tote

Adapt to Any Inventory

Configure your storage with more than 300 location possibilities and a flexible design that evolves with your changing requirements

Kardex_Icon_Higher_Picking_Performance

Pick Faster, Pick Smarter

Reduce errors and increase picking speed with boxes that fit the Kardex VLM Unit perfectly and stay securely in position

Icons_Bubble_B1_ROI_150x150

Maximize Your ROI

Make full use of every millimeter of storage space and increase storage density with a box tailored to the VLM Kardex Shuttle

Kardex_Icon_Ergonomic_Working_Conditions

Work More Ergonomically

Handle and access inventory comfortably with a box designed specifically for the VLM Kardex Shuttle

Kardex_Icon_Environment-01_Bubble

Choose Sustainably

The compact frame design saves transport and storage space, while recyclable materials and minimal production waste save resources

Kardex_Icon_Cloud_Updload

Connect to Power Pick

Get started quickly with pre-configured box layouts and software-guided picking for greater efficiency and accuracy

Choose the Right StartKit for Your Needs

Make sure you get the right setup to store all the items you're planning optimally in your VLM Kardex Shuttle with one of our three StartKits.

Each kit includes a preconfigured mix of bases, frames, and dividers to help you explore a wide variety of storage locations and find the perfect fit for your inventory. Once you’ve identified what works, you can custom order exactly what you need.

  • StartKit 1

    This is the most popular StartKit, ideal for storing goods of varying heights ranging from 50 to 200 mm. Choose between "StartKit 1 Small" or "StartKit 1 Big"

  • StartKit 2

    Designed for storing low-height goods between 50 and 150 mm in height. Choose between "StartKit 2 Small" or "StartKit 2 Big"

  • StartKit 3

    StartKit 3 is your best choice for storing higher goods between 100 to 200 mm in height. Choose between "StartKit 3 Small" or "StartKit 3 Big"

StartKit 1

This is the most popular StartKit, ideal for storing goods of varying heights ranging from 50 to 200 mm. Choose between "StartKit 1 Small" or "StartKit 1 Big"

StartKit 2

Designed for storing low-height goods between 50 and 150 mm in height. Choose between "StartKit 2 Small" or "StartKit 2 Big"

StartKit 3

StartKit 3 is your best choice for storing higher goods between 100 to 200 mm in height. Choose between "StartKit 3 Small" or "StartKit 3 Big"

Insights & Customer Success Stories

Contact us to understand what Kardex VLM Box best fits your needs

CONTACT US

Flexible Storage

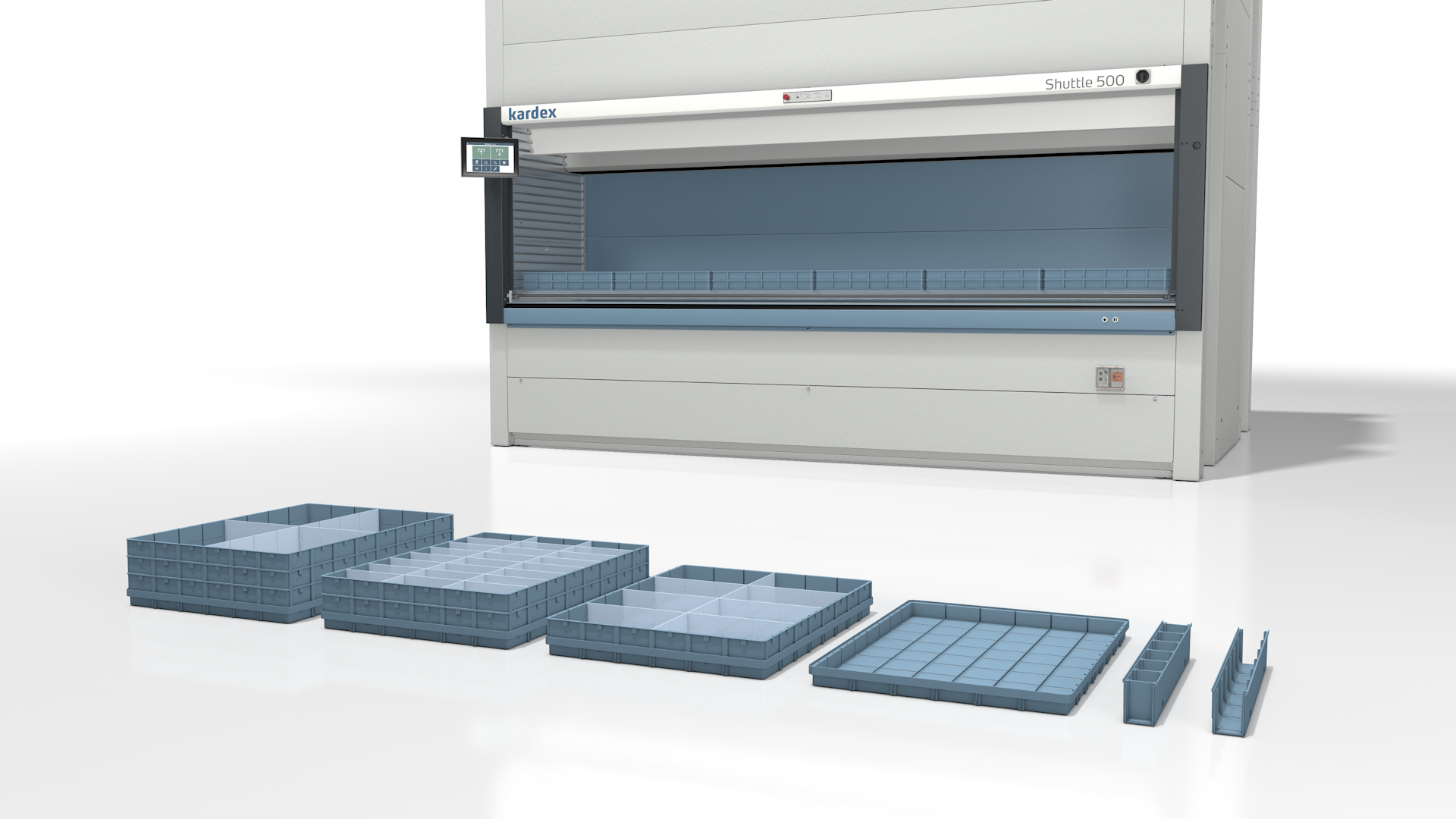

The Kardex VLM Box has been purpose-built for the VLM Kardex Shuttle, creating a storage solution that maximizes every millimeter of available space. Designed to fit perfectly on the tray, the boxes remain securely positioned while enabling highly organized, high-density storage.

Built for Today. Ready for Tomorrow.
Unlike fixed storage containers, the Kardex VLM Box can be reconfigured as your requirements change. With the innovative EasyClick frame system, users can adjust box heights and internal layouts while choosing from multiple box widths and depths to suit their inventory.

With more than 300 possible storage configurations, the Kardex VLM Box can be tailored to virtually any product range. As products and processes evolve, the same boxes can be adapted instead of replaced, protecting your investment for the long term.

Maximize the Value of Your Kardex VLM Unit
The right storage strategy helps you get more from your automated storage system. By optimizing space utilization and improving inventory organization, the Kardex VLM Box increases storage density and helps maximize the return on investment of your Kardex Shuttle.

Seamless Software Integration
When combined Kardex Power Pick System or Kardex Power Pick Cloud powered by KardexOne software platform, making the most of your VLM Kardex Boxes is simple. All available box configurations are already integrated into the software, allowing operators to quickly locate items and pick with greater speed and accuracy. The result is faster order fulfillment, reduced search times, and fewer picking errors.

Sustainable by Design
The Kardex VLM Box is 100% recyclable and designed to minimize production waste. Its smart frame concept reduces transport volume. Its adaptable design extends product life and reduces the need to replace storage containers as inventory requirements change.

Technical Data

VLM Box Type Kardex VLM Box 800 Kardex VLM Box 850
Dimensions Dimensions Dimensions VLM Box 800 800 mm × 600 mm × 50 mm Dimensions VLM Box 850 850 mm x 598 mm x 52 mm
Material Material Polypropylene (box & frame), PET/SAN (dividers) Polypropylene (box & frame), PET/SAN (dividers) Purely polypropylene Purely polypropylene
Weight (empty box) Weight (empty box) 1.32 kilograms 1.32 kilograms 1.646 kilograms 1.646 kilograms
Volume Volume Volume VLM 800 17.4 liters Volume 850 18.95 liters
Divider color Divider color VLM Box 800 Transparent dividers VLM Box 850 Silver fir blue dividers
Spacer Spacer VLM Box 800 Compatible with VLM Box 800 spacer VLM Box 850 No spacers needed
Payload Payload VLM Box 800 Payload depends on the tray used VLM Box 850 Payload depends on the tray used
Height Increments of the Box Frames Height Increments of the Box Frames Elevation grid of the frames VLM 800 Elevation grid of the frames 850
Elevation grid of the frames (base) Base box Elevation grid of the frames VLM 800 Base Box 50 mm Elevation grid of the frames 850 Base Box 52 mm
Elevation grid of the frames (base box + 1 frame) Base box + 1 frame Elevation grid of the frames VLM 800 Base Box + 1 frame 100 mm Elevation grid of the frames 850 Base Box + 1 frame 98 mm
Elevation grid of the frames (base + 2 frames) Base box + 2 frames Elevation grid of the frames VLM 800 Base Box (base + 2 frames) 150 mm Elevation grid of the frames 850 Base Box (base + 2 frames) 148 mm
Elevation grid of the frames (base + 3 frames) Base box + 3 frames Elevation grid of the frames VLM 800 Base Box (base + 3 frames) 200 mm Elevation grid of the frames 850 Base Box (base + 3 frames) 198 mm

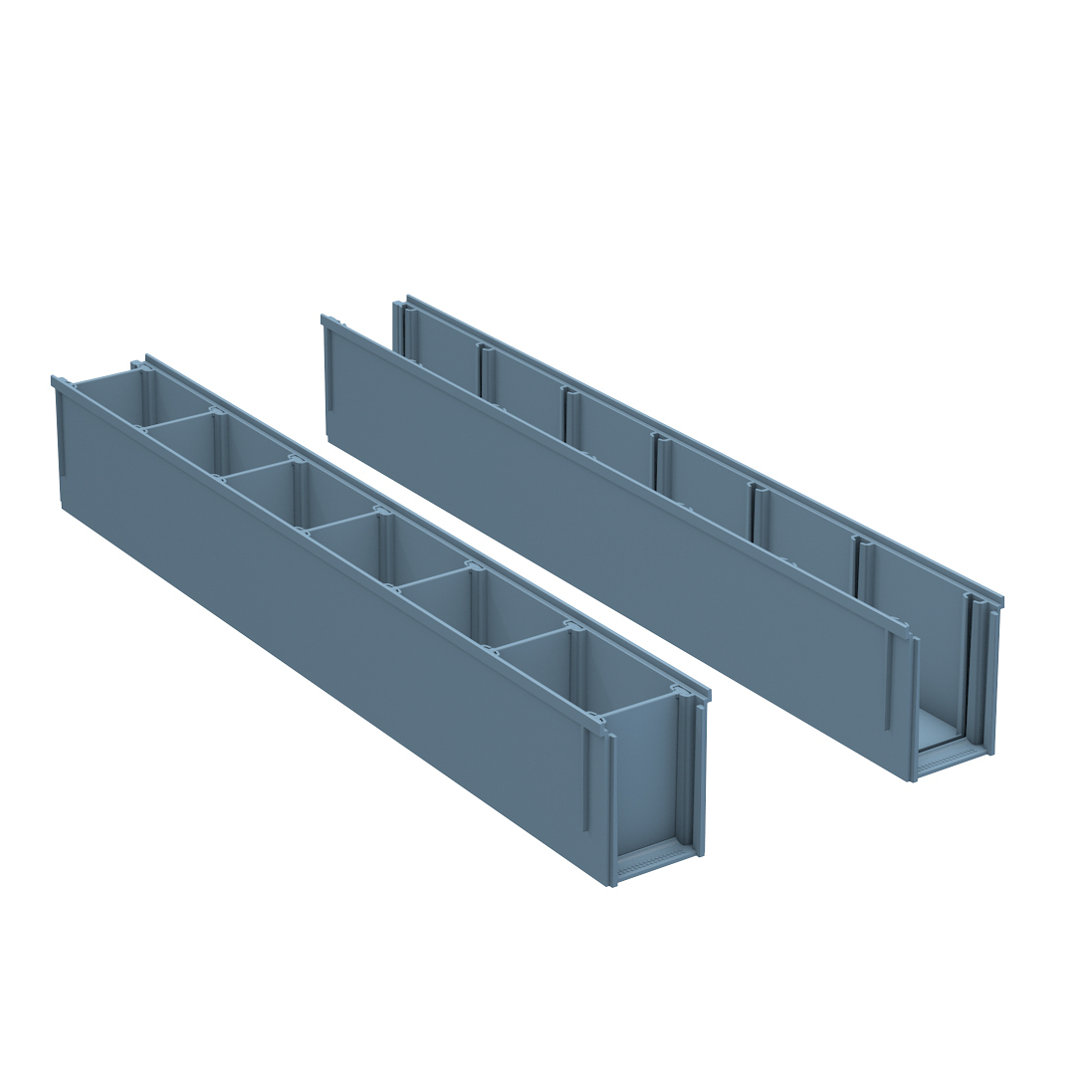

Graphic VLM Box Spacer-1097x1097-88fe1ef

Kardex VLM Box Spacer

The VLM Box Spacer is only relevant for the VLM Box 800. It ensures optimal use of the VLM Box 800 in 864 mm deep trays by positioning the boxes precisely and securely in the tray. This way, the VLM Box Spacer increases space utilization while reducing picking errors. Its quick-click connection system and ergonomic design make it a smart, flexible addition to your storage layout.
