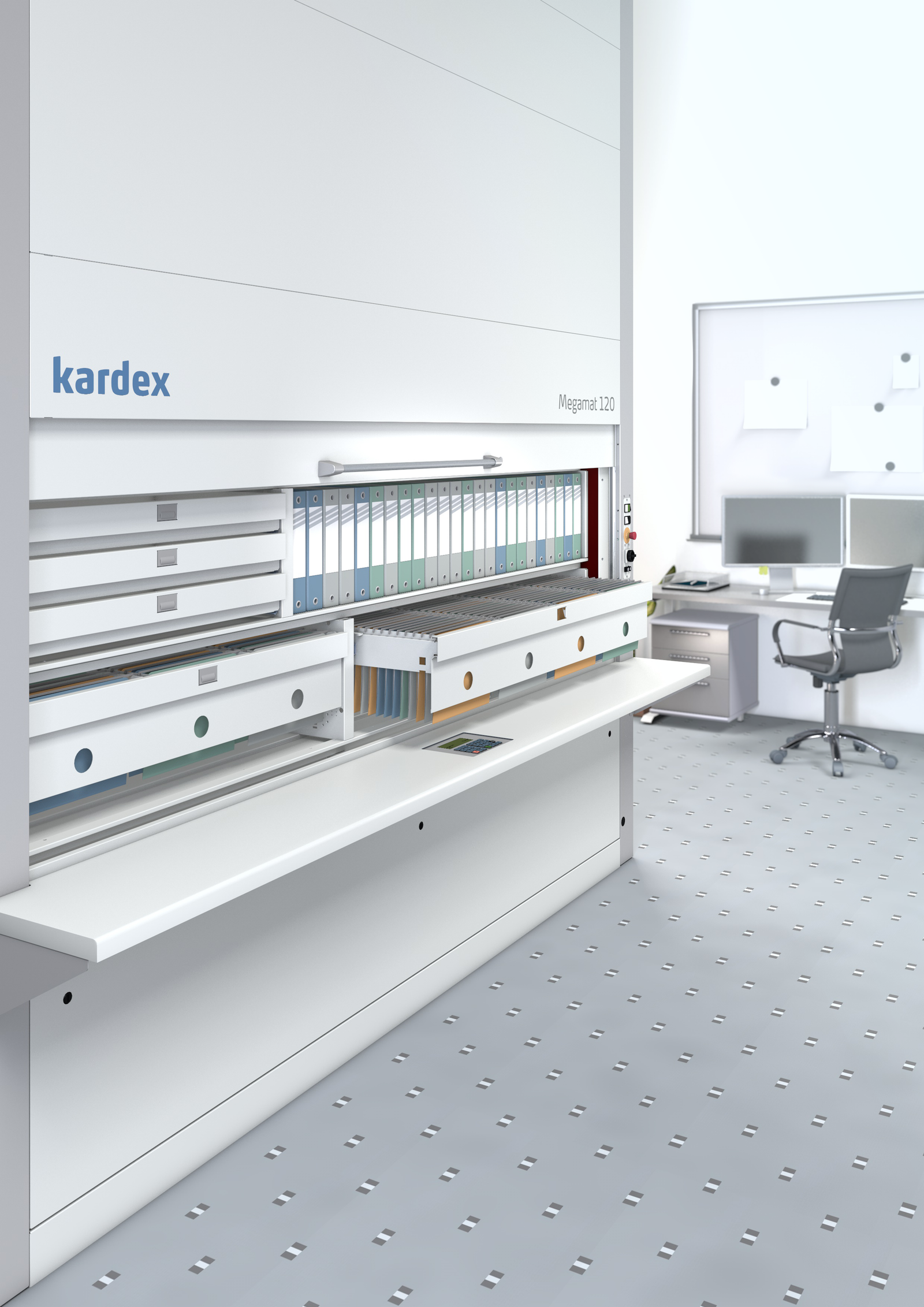

The Kardex Megamat 115 / 120 / 125 (formerly Lektriever) is a software-controlled automated media storage and retrieval system that holds thousands of media files, videos, CDs, DVDs, or a host of other media.

Its capacity is equivalent to approximately 16 four-drawer filing cabinets. It operates in a stand-alone mode or networked to an IT system. It is as easy to operate as a printer -  simply click on the requested file or media type and the Megamat 115 / 120 /125 (formerly Lektriever) will search, select, and retrieve the requested item.

Benefits at a glance

  • Automated retrieval (requested item conveys to the user)
  • Eliminates physical demands, such as long walks or bending and stretching when obtaining documents
  • The system is easy to operate and equally possible for workers that are physically handicap or have restricted physical mobility
  • Perform work standing up or sitting down
  • Productivity is almost double when compared to manual systems (e.g., drawer and cabinet systems)



  • Requires only a small footprint
  • The units extend straight up to the ceiling
  • The units stretch over several floors
  • Almost twice as efficient as drawer or horizontal cabinet systems



  • Select any color for a personalized appearance
  • Configure the paneling design and table surface individually



    • Safely store confidential documents
    • Meets legal regulations to protect the rights of individuals
    • System is restricted to specific individuals and opens only via an access code or PIN number

Technical data

Megamat 115 Megamat 120 Megamat 125
Width Width 2,560 mm; 2,947 mm; 3,269 mm (101 in; 116 in; 129 in) 2,560 mm; 2,947 mm; 3,269 mm (101 in; 116 in; 129 in) 2,630 mm; 2,947 mm; 3,269 mm (104 in; 116 in; 129 in)
Height Height 2,200 - 3,700 mm (87 - 146 in) 2,250 - 3,700 mm (89 - 146 in) 2,025 – 3,575 mm (80 - 141 in)
Depth Depth 925 mm (37 in) 1,155 mm; 1,175 mm (46 in; 47 in) 1,202 mm (48 in)
Load per carrier Load per carrier 100 - 150 kg (220 - 330 lbs) 100 - 150 kg (220 - 330 lbs) 90 - 140 kg (198 - 308 lbs)
